Alto Voltaje
Posición colores en Alto voltaje
Alto Voltaje
| COLOR | CIRCUITO | CIRCUITO | COLOR |
|---|---|---|---|
| CAFE | 1 | 2 | CAFE |
| NARANJA | 3 | 4 | NARANJA |
| AMARILLO | 5 | 6 | AMARILLO |
| CAFE | 7 | 8 | CAFE |
| NARANJA | 9 | 10 | NARANJA |
| AMARILLO | 11 | 12 | AMARILLO |
| CAFE | 13 | 14 | CAFE |
| NARANJA | 15 | 16 | NARANJA |
| AMARILLO | 17 | 18 | AMARILLO |
| CAFE | 19 | 20 | CAFE |
| NARANJA | 21 | 22 | NARANJA |
| AMARILLO | 23 | 24 | AMARILLO |
| CAFE | 25 | 26 | CAFE |
| NARANJA | 27 | 28 | NARANJA |
| AMARILLO | 29 | 30 | AMARILLO |
| CAFE | 31 | 32 | CAFE |
| NARANJA | 33 | 34 | NARANJA |
| AMARILLO | 35 | 36 | AMARILLO |
| CAFE | 37 | 38 | CAFE |
| NARANJA | 39 | 40 | NARANJA |
| AMARILLO | 41 | 42 | AMARILLO |
| CAFE | 43 | 44 | CAFE |
| NARANJA | 45 | 46 | NARANJA |
| AMARILLO | 47 | 48 | AMARILLO |
| CAFE | 49 | 50 | CAFE |
| NARANJA | 51 | 52 | NARANJA |
| AMARILLO | 53 | 54 | AMARILLO |
| CAFE | 55 | 56 | CAFE |
| NARANJA | 57 | 58 | NARANJA |
| AMARILLO | 59 | 60 | AMARILLO |

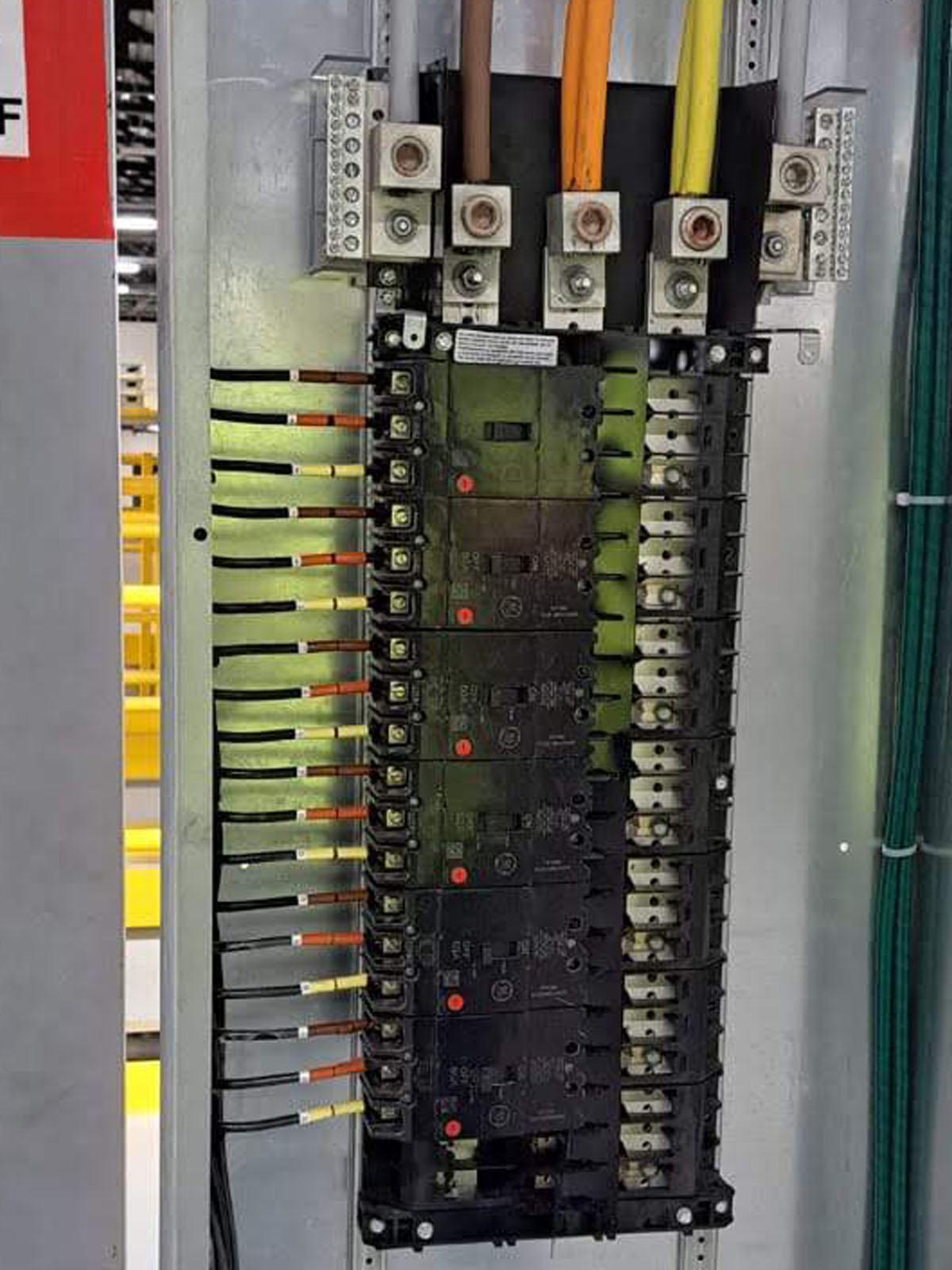

Ejemplo
Posicion de colores en panel
